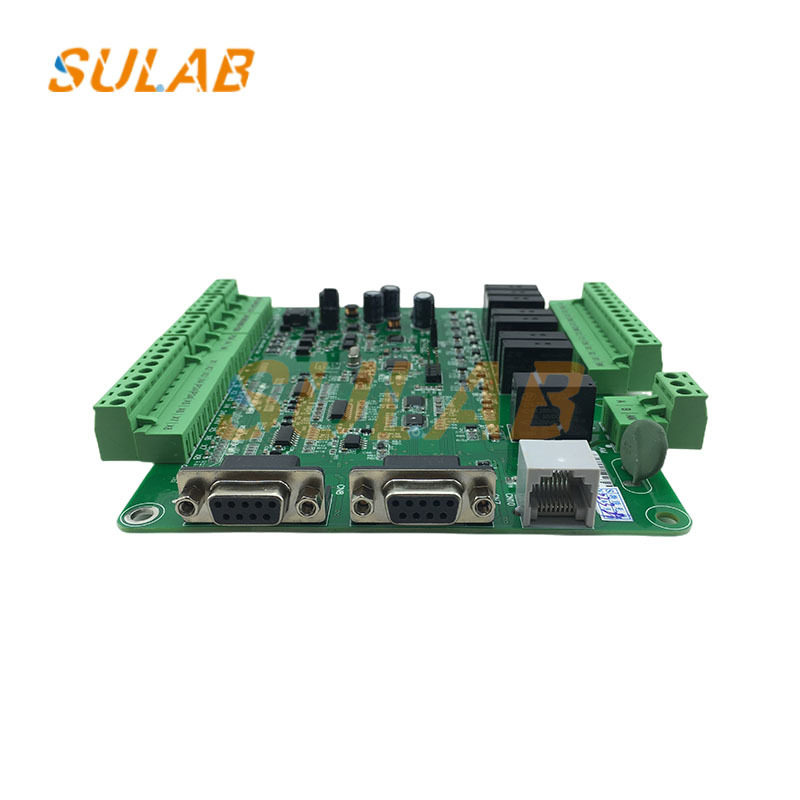

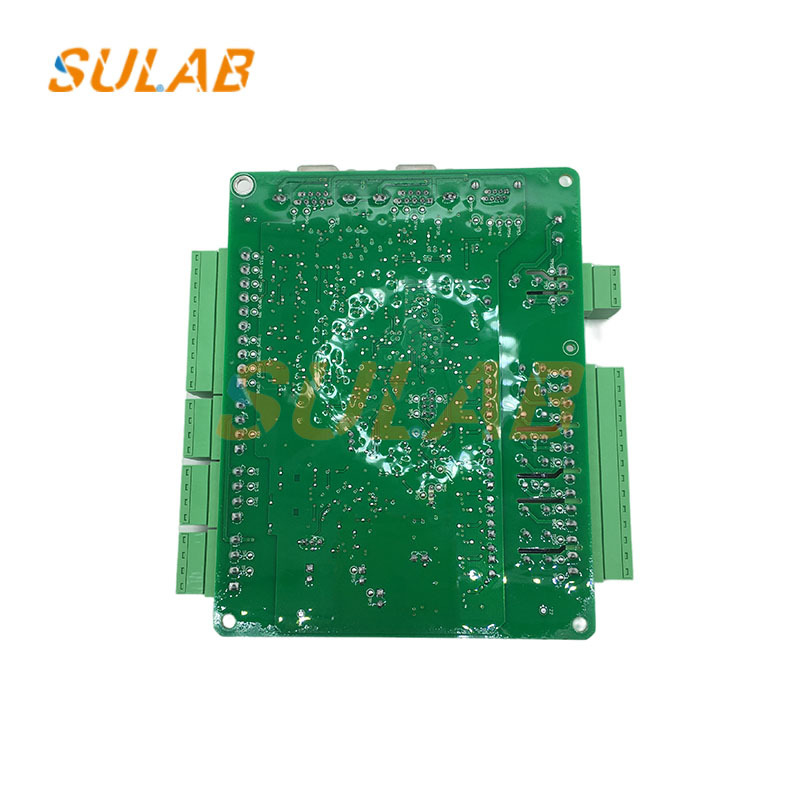

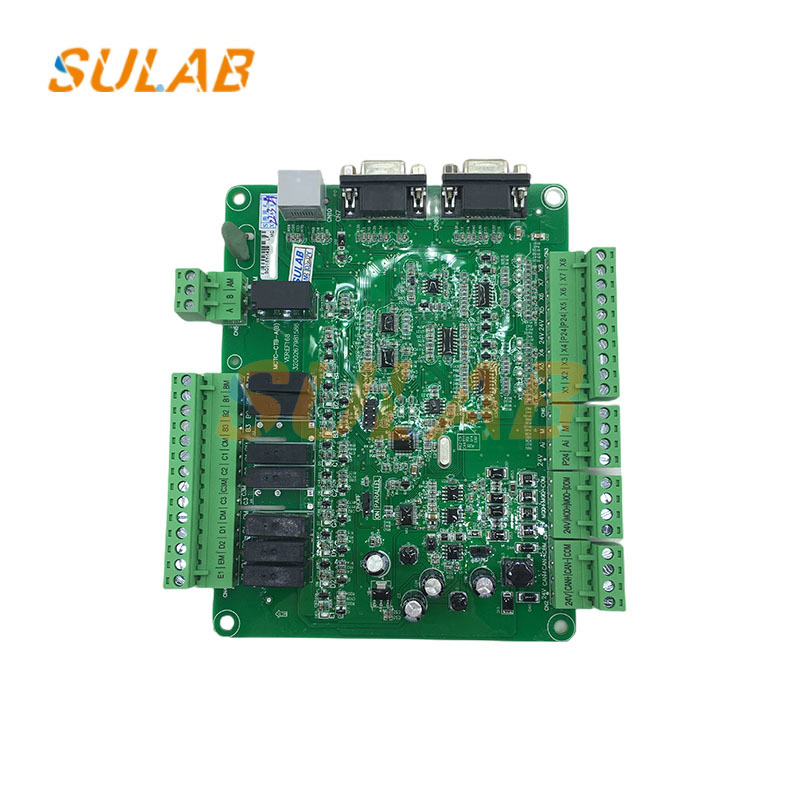

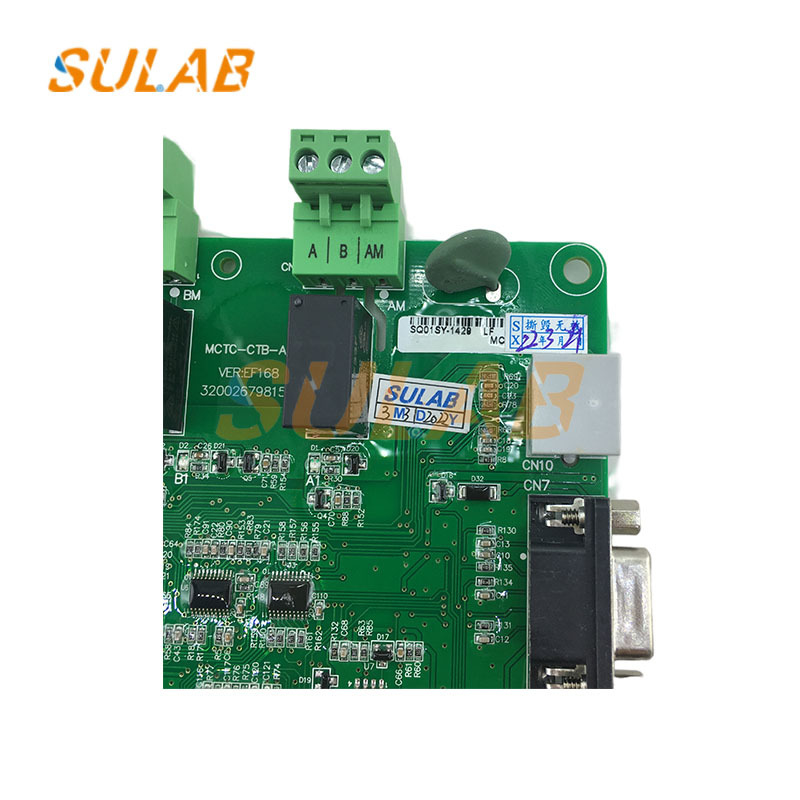

Monarch MCTC-CTB-A Elevator Car Top Communication Board
Elevator Car Top Communication Board MCTC-CTB-A(B) Full Protocol Car Communication Board New For Monarch
Product Specifications
| Attribute | Value |
|---|---|
| Brand | Monarch |
| Description | Elevator board |
| Model | MCTC-CTB-A |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Product Description
The MCTC-CTB-A from MONARCH is the car control board (car top board) of the NICE3000 elevator integrated controller, designed for reliable elevator communication and control.
Hardware Configuration
- 8 digital inputs for comprehensive signal reception
- 9 relay outputs (7 standard, 9 non-standard) for flexible control
- 1 group of analog inputs for precise measurements
- 485 communication and CAN communication interfaces
- 2 groups of parallel port expansions for additional connectivity
Functional Features
- Through-door control for effective door management
- Analog torque compensation to ensure elevator operation stability
- Processes overload signals and full-load signals for real-time load status feedback
- Bidirectional arrival bell signal output for passenger notification
- Drives communication display boards and in-car command boards for information display and command reception

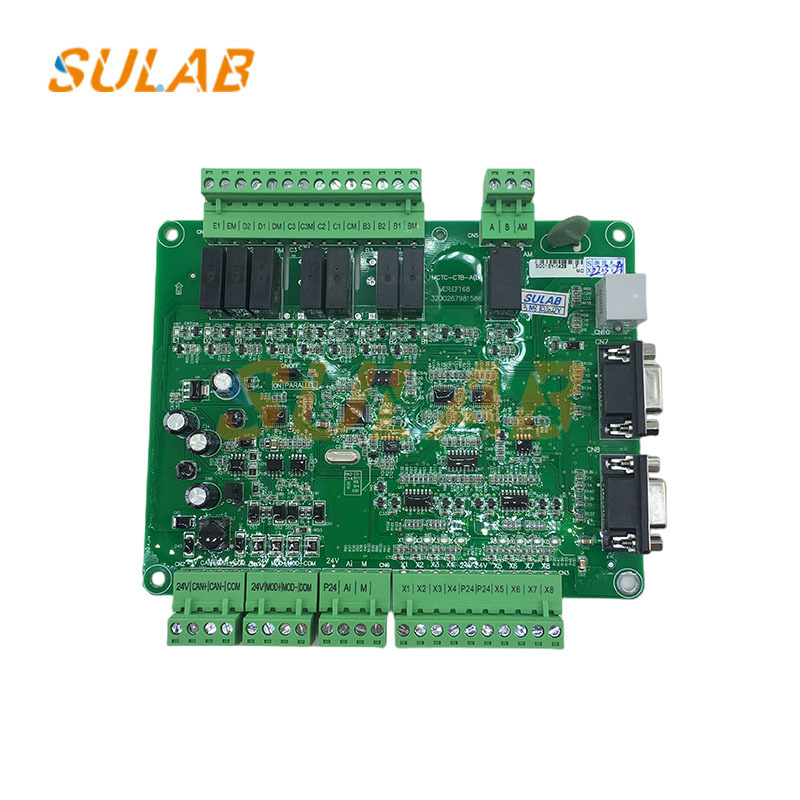

Terminal Wiring
- +24V/CON: External 24VDC power supply for board operation
- CAN+/CAN-: CAN communication interface with main control board
- +24V/COM: 24VDC output for MCTC-HCB in-car display board
- AI-M: Analog weighing signal input (0VDC-10VDC range)
- Multiple digital input terminals including light curtain inputs and door position sensors
- Multiple relay output terminals for door control signals and forced door operations
